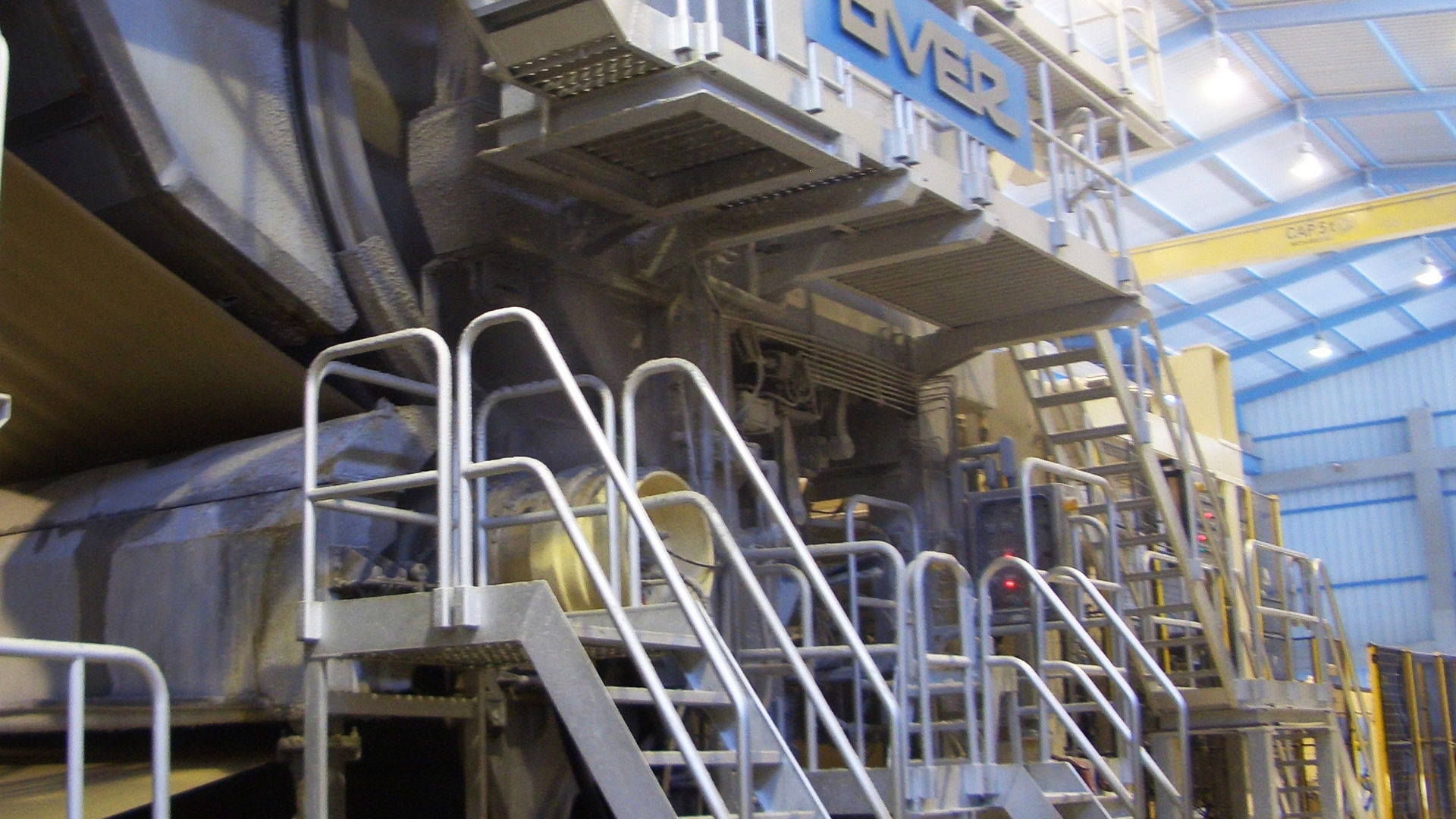

TISSUE MACHINE OVER CR D22 XL
  • Products
  • TISSUE MACHINES

TISSUE MACHINE OVER CR D22 XL

The OVER CR D22 XL is the "Double width" OVERMADE tissue machine and represents the tissue machine for top output rate.

  • Production Capacity: 250 tpd
  • Reel Sheet Width: 5600 mm
  • Design Speed: 2200 mpm
more information

It has been specially designed for higher grammages tissue, in the range of 16 gsm and above. It was equipped with a 5,486 mm Yankee diameter, it is conceived to operate at 2,200 mpm. The standard design is provided with big diameter suction press roll, but double press layout is available as well.

Our team is ready to assist you from the design phase to the complete turn-key service. Ask more information.

Machine Basic Specification

Basis weight

12 - 40 gsm

Design speed

2200 mpm

Maximum operating speed

2000 mpm

Trimmed width at reel

5650 mm

Production capacity

250 tpd

Forming roll diameter

1500 mm

Forming section rolls number

5 nr.

Yankee Dryer diameter

5486 mm

Hood heating medium

Gas

Information requestTISSUE MACHINE OVER CR D22 XL

Required field

Invalid email address

Please enter a phone number

Required field

Required field

Valore non valido

Tissue Machine Components

HEADBOX DYNAFLO-C

HEADBOX DYNAFLO-C2

HEADBOX DYNAFLO-TWC

OVER FORMER-C

OVER FORMER-CR

OVER FORMER-SBR

OVER REEL-TH

OVER REEL-TT

TISSUE PRESSES

YANKEE DRYERS
