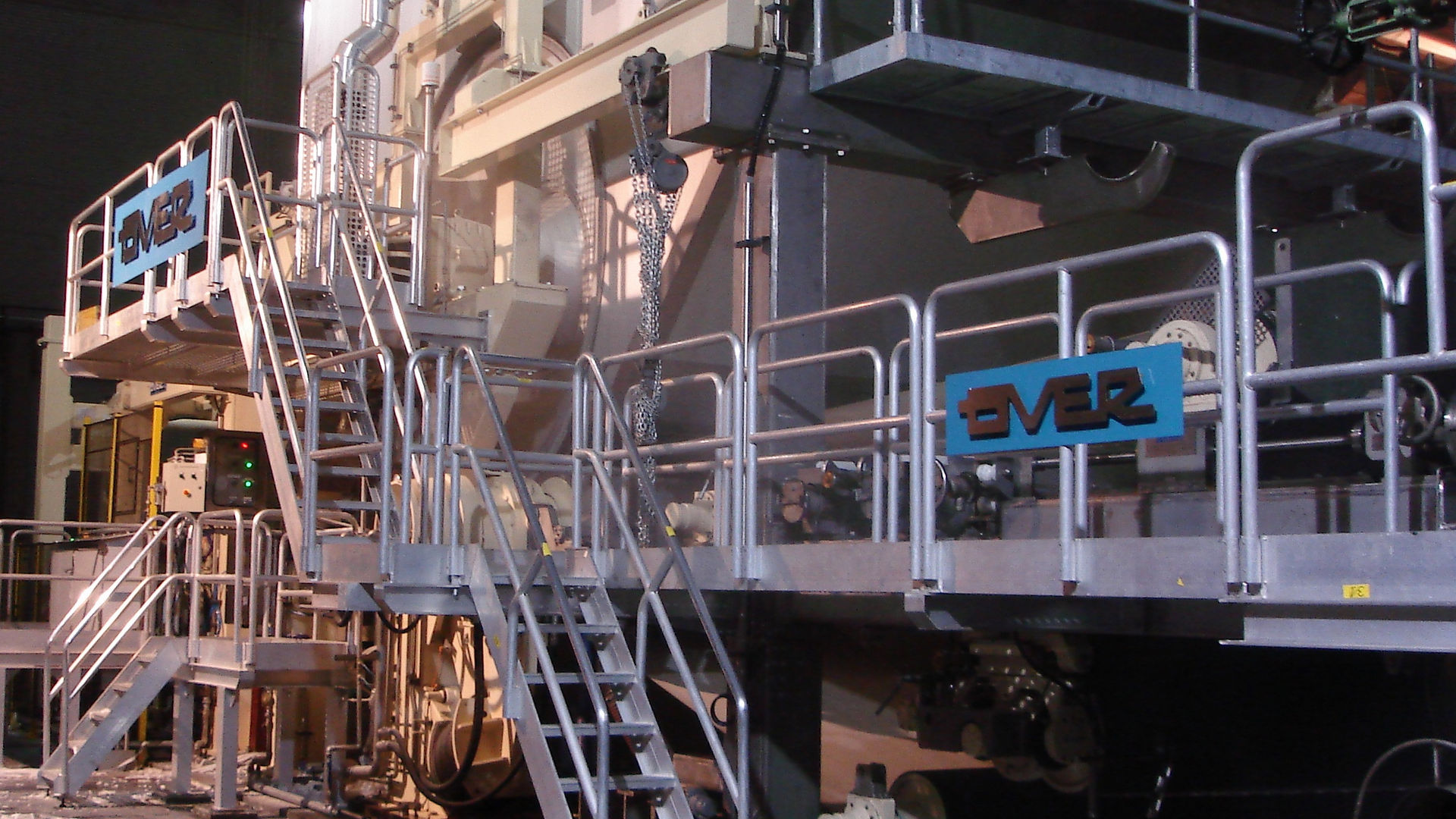

TISSUE MACHINE OVER CR C18 L
The OVER CR C18 L is the wider sister of the C18 tissue machine.
- Production Capacity: 110 - 120 tpd
- Reel Sheet Width: 3450 - 3600 mm
- Design Speed: 1800 mpm
Designed for a speed of 1,800 mpm, it produces up to 3,600 mm reel paper width. The standard version it is equipped with a 3,600 mm Yankee diameter and a single suction press roll, but the double press layout is available as well. Our team is ready to assist you from the design phase to the complete turn-key service. Ask more information.
Machine Basic Specification
Basis weight | 12 - 40 gsm |
Design speed | 1800 mpm |
Maximum operating speed | 1600 mpm |
Trimmed width at reel | 3450 - 3600 mm |
Production capacity | 110 - 120 tpd |
Forming roll diameter | 1500 mm |
Forming section rolls number | 4 nr. |
Yankee Dryer diameter | 3600 mm |
Hood heating medium | Gas |
