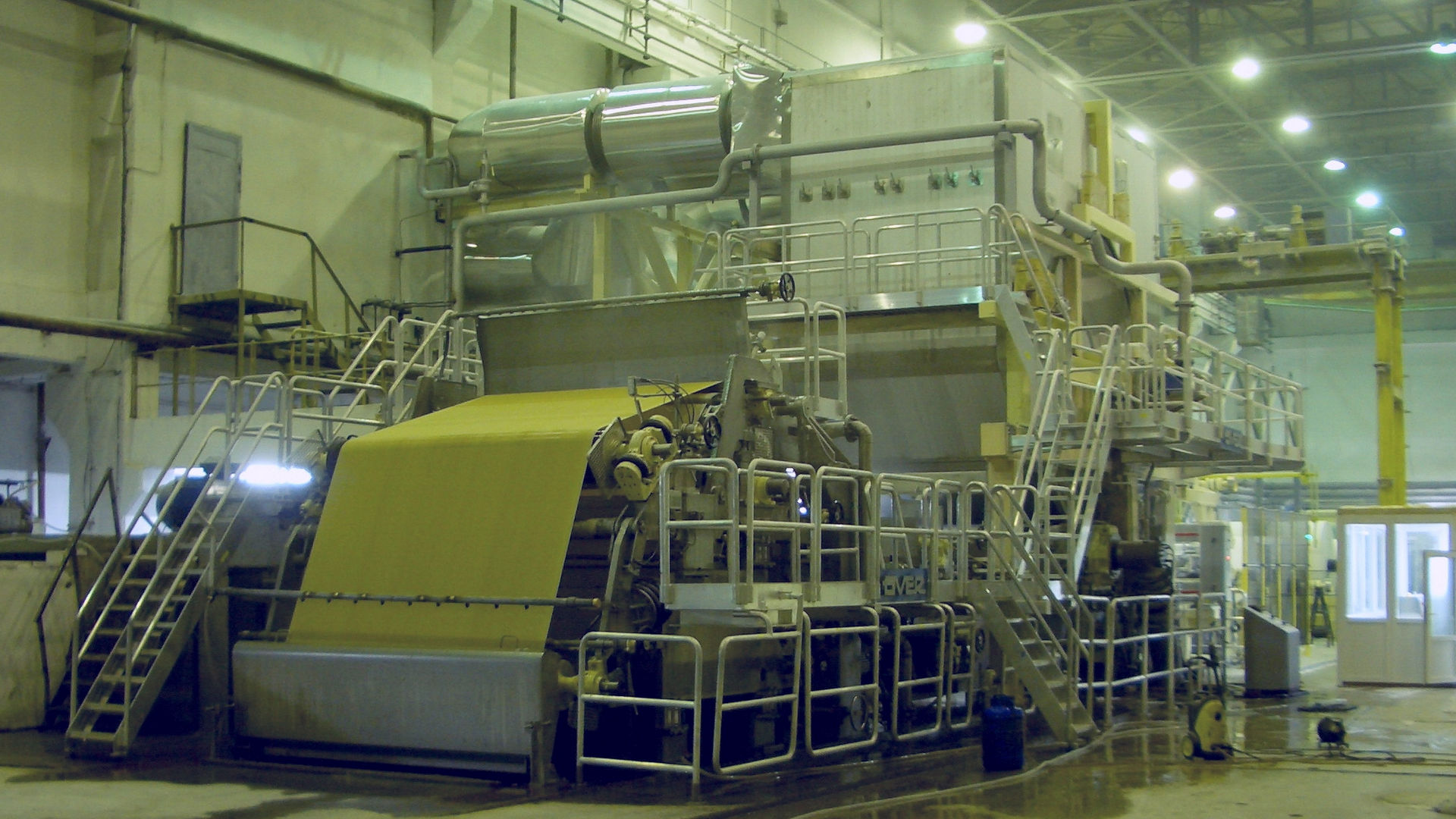

TISSUE MACHINE OVER CR B13
The OVER CR B13 line is the medium in terms of production rate within the OVER CR B series, and it is the smallest machine equipped with the 3,600 mm Yankee.
- Production Capacity: 50 tpd
- Reel Sheet Width: 2750 - 2850 mm
- Design Speed: 1300 mpm
The OVER B13 units are designed for the first market entry and for the emerging markets; they are equipped with steam or gas heated hood, with multiple solutions in the press section and with different Yankee sizes. In general, the OVER B lines start from 40 tpd and can produce up to 70 tpd. Our references list is full of examples of paper mills that, from 40 tpd, were able to increase the production capacity, after upgrading the machine. Our team is ready to assist you from the design phase to the complete turn-key service. Ask more information.
Machine Basic Specification
Basis weight | 12 - 40 gsm |
Design speed | 1300 mpm |
Maximum operating speed | 1200 mpm |
Trimmed width at reel | 2750 - 2850 mm |
Production capacity | 50 - 60 tpd |
Forming roll diameter | 1120 mm |
Forming section rolls number | 4 nr. |
Yankee Dryer diameter | 3600 mm |
Hood heating medium | Vapore o gas / Steam or gas / Vapor o gas |
